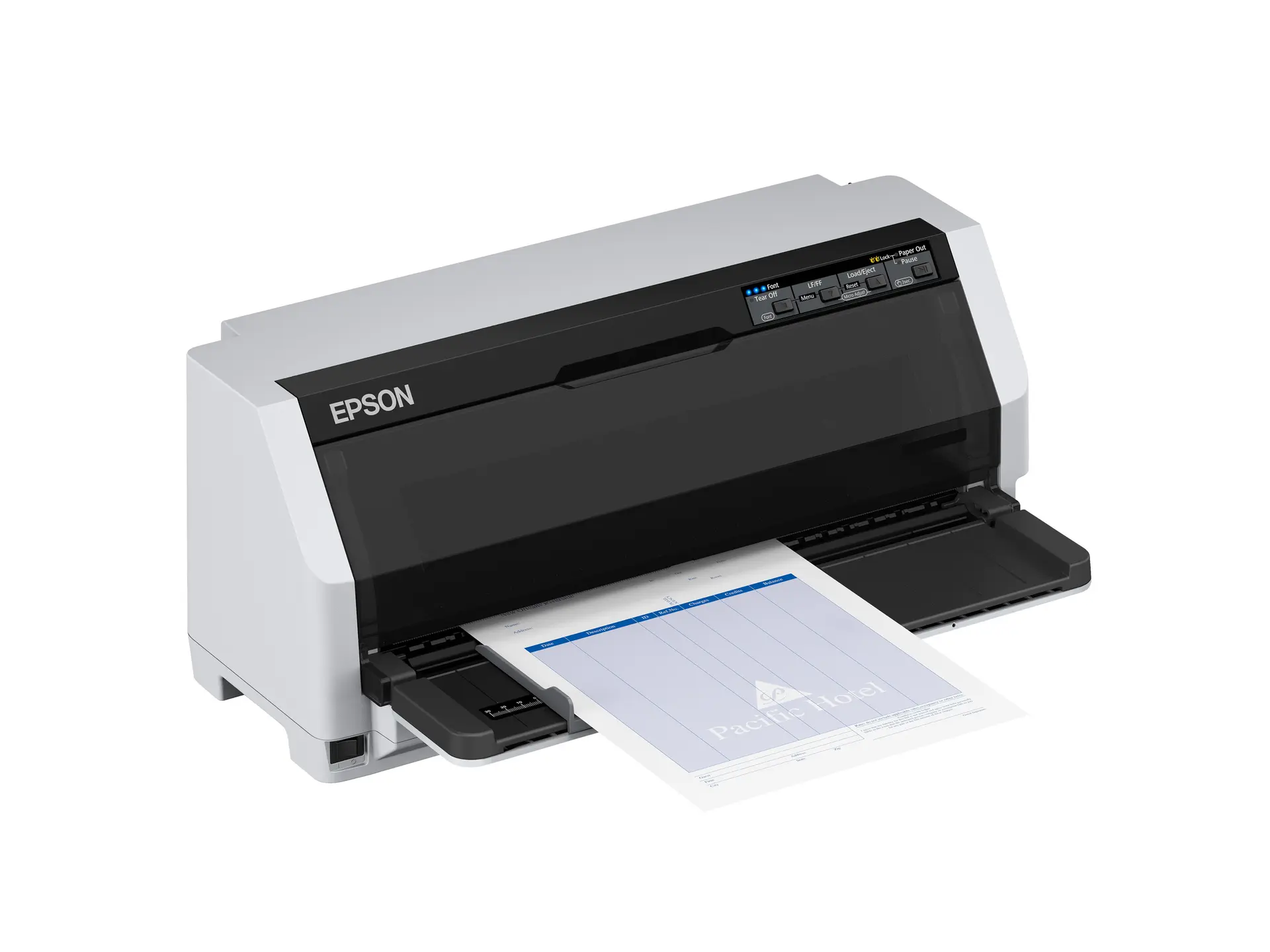

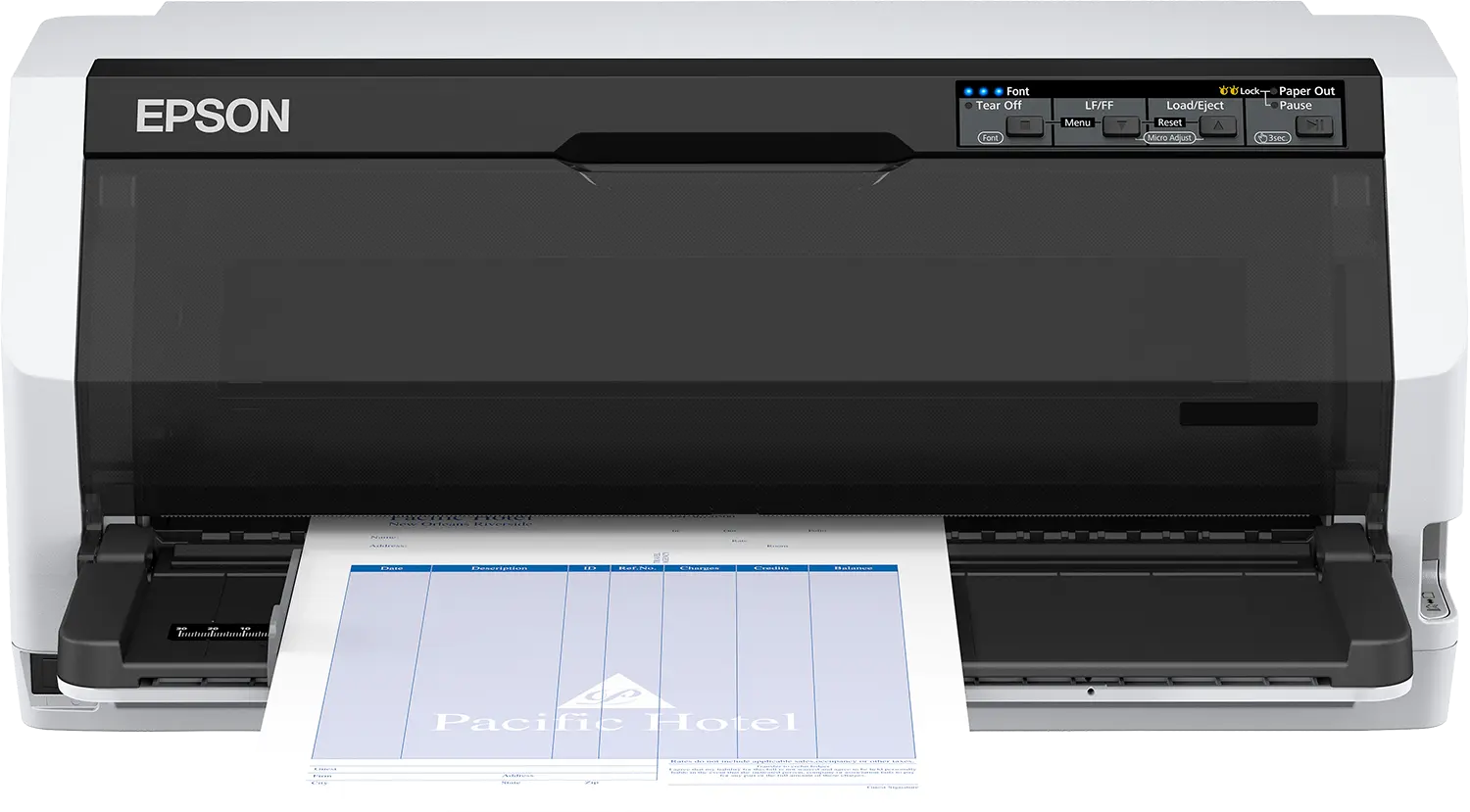

Epson LQ-690II 24-pin Dot Matrix Printer – High-Speed Industrial Printing Solution

Epson LQ-690II 24-pin Dot Matrix Printer – High-Speed Industrial Printing Solution

Designed for heavy-duty performance, the Epson LQ-690II features 24-pin impact printing technology that produces sharper text and clearer documents compared to traditional 9-pin printers. It supports a wide range of paper types, including multi-part forms, labels, and continuous stationery.

With its long-life ribbon and robust build, the printer ensures consistent operation even in high-volume environments. Its flexible paper handling and connectivity options make it easy to integrate into existing systems, including legacy setups.

---

Product Key Features

1. 24-Pin High-Quality Printing

Delivers sharp, detailed text and improved print clarity for professional documents.

2. High-Speed Performance

Print speeds of up to 487 characters per second enhance productivity for large print jobs.

3. Multi-Part Form Capability

Supports up to 1 original plus 6 copies, ideal for invoices, delivery notes, and official documents.

4. Flexible Paper Handling

Handles continuous paper, cut sheets, labels, and multi-layer forms with ease.

5. Long-Lasting Ribbon

Ribbon yield of up to 10 million characters reduces maintenance and operating costs.

6. Multiple Connectivity Options

Includes USB, serial, and parallel interfaces for compatibility with various systems.

7. Durable Industrial Design

Built for continuous operation with high reliability in demanding work environments.

---

Benefits

• Enhanced Print Quality: 24-pin technology produces clearer and more professional output.
• High Productivity: Fast print speeds support high-volume workflows.
• Cost Efficiency: Long ribbon life and low power consumption reduce operational costs.
• Versatile Usage: Suitable for invoices, reports, logistics forms, and industrial documentation.
• Reliable Operation: Designed for long-term use with minimal downtime.

---

How to Use

1. Connect the printer using USB, serial, or parallel interface.
2. Load the appropriate paper type (continuous forms or single sheets).
3. Install compatible drivers on your system.
4. Adjust paper alignment and print settings as needed.
5. Start printing high-volume or multi-part documents.

---

Compliance Statement

The Epson LQ-690II is designed for legitimate business and industrial applications. It complies with standard safety and operational guidelines, ensuring reliable and responsible use in professional environments.

---

Technical Specifications

• Model Number: LQ-690II / C11CF39401
• Printer Type: Dot Matrix (Impact)
• Print Method: 24-pin
• Print Speed: Up to 487 cps
• Print Resolution: Approx. 360 × 180 dpi
• Columns: 106 columns
• Multi-Part Forms: 1 original + 6 copies
• Ribbon Yield: Up to 10 million characters
• Connectivity: USB 2.0, Serial (RS-232), Parallel
• Paper Types: Continuous paper, cut sheets, labels, envelopes
• Paper Width: Up to 420 mm
• Power Consumption: Approx. 42W (operation)
• Dimensions: Approx. 480 × 370 × 210 mm
• Weight: Approx. 9.4 kg
• MTBF (Reliability): Up to 25,000 hours

---

Conclusion

The Epson LQ-690II 24-pin Dot Matrix Printer is a robust and high-performance solution for businesses that rely on precise, multi-part document printing. With its superior print quality, durability, and cost efficiency, it is an excellent choice for organizations operating in demanding environments.
